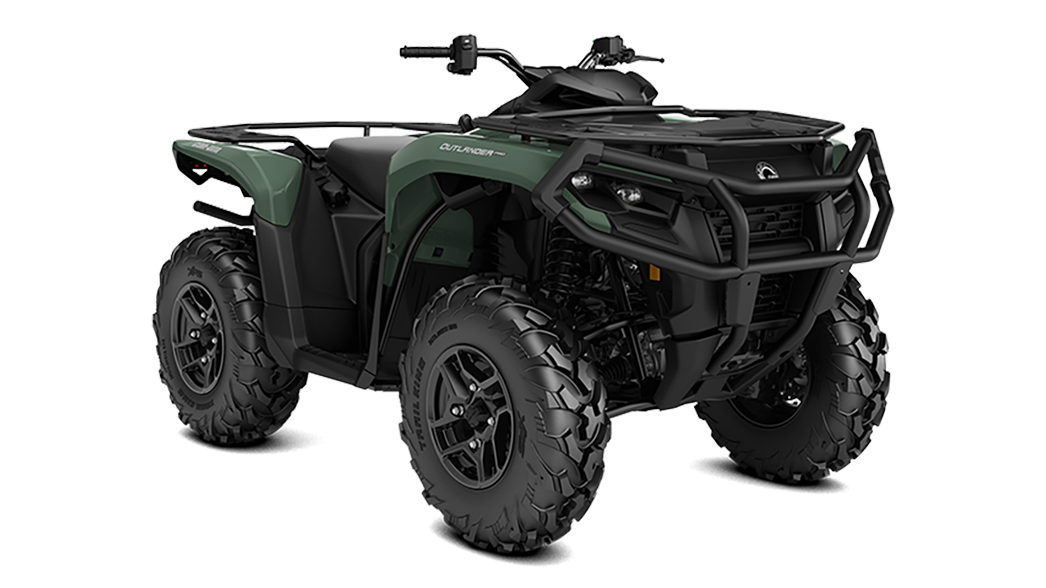

2023 Outlander XU HD7
2023 Outlander XU HD7
OVERVIEW
MY23 PRO XU HD 7 | The 2023 Outlander PRO XU lineup’s new Rotax engines have been tuned specifically to give you more power with less noise and vibration, and they’re now angled towards the rear for better airflow and heat dissipation, plus a more comfortable ride. Time to punch in.
SPECIFICATIONS
ENGINE
ENGINE
Horsepower: 50 HP
Power Steering: Tri-Mode Dynamic Power Steering
Fuel Delivery System: Intelligent Throttle Control with EFI
Type: Rotax ACE 650 cc, Liquid cooled
SUSPENSION
SUSPENSION
Front Suspension: Double A-arm 9.75 in. travel
Front Shocks: Twin-tube
Rear Suspension: Double A-arm 10.25 in. travel
Rear Shocks: Twin-tube
TYRES AND WHEELS
TYRES AND WHEELS
Front Tyres: XPS Trail King, 6-ply rating, 26 x 8 x 12 in.
Rear Tyres: XPS Trail King, 6-ply rating, 26 x 10 x 12 in.
Wheels: 12 in. cast aluminium
BRAKES
BRAKES
Front: Dual 214 mm disc brakes
Rear: Single 214 mm disc brake
DIMENSIONS AND CAPACITIES
DIMENSIONS AND CAPACITIES
L x W X H: 228.4 x 124 x 122.4 cm
Wheelbase: 53 in. (134.6 cm)
Ground Clearance: 13 in. (33 cm)
Towing Capacity: 830 kg
Rack Capacity: Front: 54.4 kg / Rear: 109 kg
Storage Capacity: 34 L
Fuel Capacity: 19.5 L
Person Capacity: 1
Estimated Dry Weight: 370.1 kg
